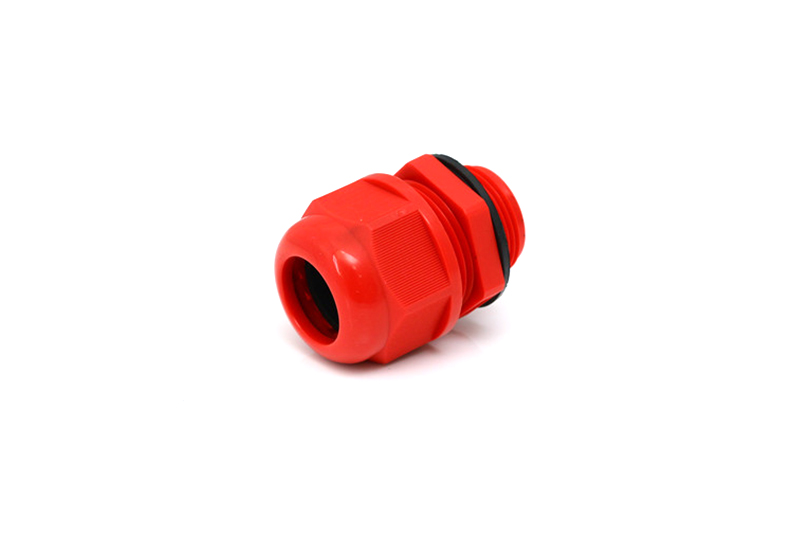

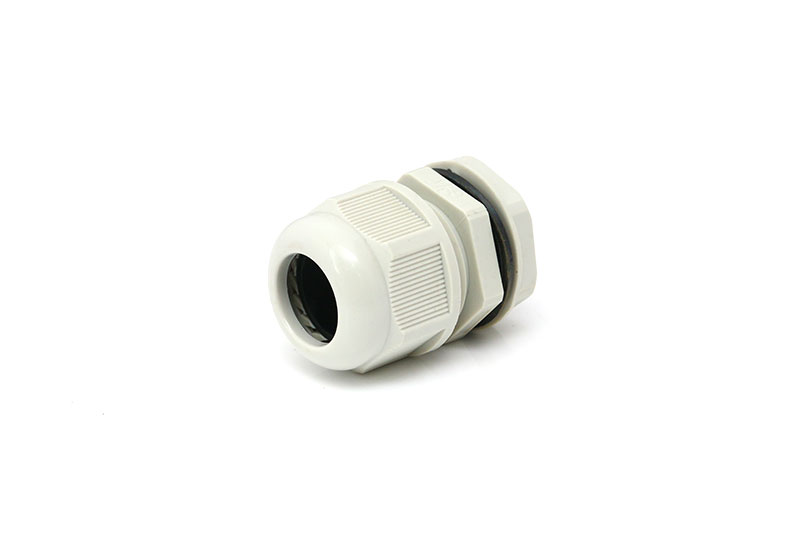

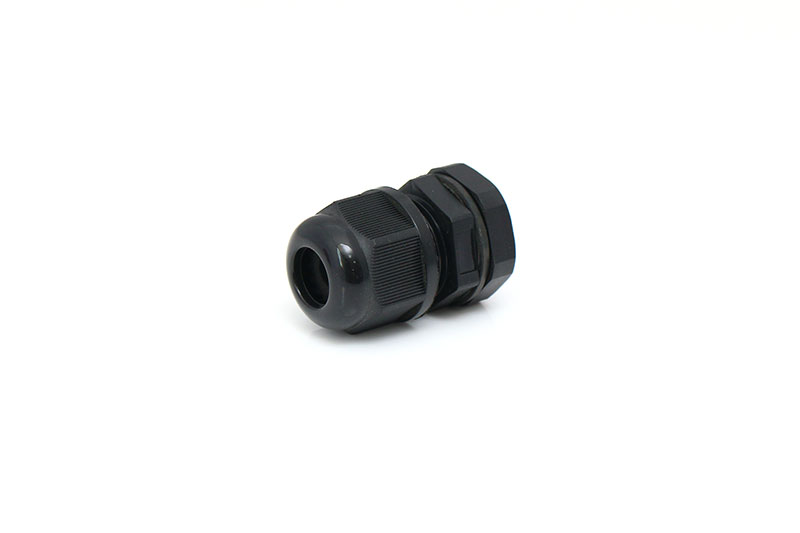

環保防水塑料電纜固定接頭尼龍阻燃穿線格蘭頭廠家批發
分類：尼龍制品
型號：HSK
品牌：ATR
產地：寧波市奉化區
廠家：奉化市安泰爾電器有限公司
產品詳情
產品概述
產品材質:尼龍PA66(可定制UL認可的V-0防火等級尼龍原料);密封件采用三元乙丙耐候橡膠(可定制耐寒、耐高溫橡膠;耐高酸堿、耐化學與抗腐蝕橡膠)
保護等級:IP68(已通過ROHS認證)
工作溫度:靜態-40℃至100℃,或瞬間可耐熱至120℃;動態-20℃至80℃，或瞬間可耐熱至100℃.
產品特性:特殊夾緊爪與夾緊圈之設計，夾緊電纜范圍大，抗拉力特強，可防水、防塵、抗鹽、耐弱酸、酒精、油、油脂及一般溶劑。
顏色種類:黑色(B),灰白色(G)，其他顏色可定制。
結構圖
技術參數
HSK-M 公制螺紋
| 規格型號 | 螺紋規格 | 卡口范圍 | 螺紋外徑 | 螺紋長度 | 扳手尺寸 | 包裝單位 |
| HSK-M8 | M8x1.25 | 2-4.8 | 8 | 7.5 | 13/12 | 50 |
| HSK-M10 | M10*1.5 | 3-6 | 10 | 8 | 15/13 | 50 |
| HSK-M12 | M12x1.5 | 3-6.5 | 12 | 8.5 | 18/15 | 50 |
| 3-5.5 | 12 | 8.5 | 18/19 | 50 | ||
| 4-8 | 12 | 8.5 | 18/19 | 50 | ||
| HSK-M16 | M16x1.5 | 3-5.5 | 16 | 10 | 22/19 | 50 |
| 4-8 | 16 | 10 | 22/19 | 50 | ||
| 4-7 | 16 | 10 | 22/22 | 50 | ||
| 6-10 | 16 | 10 | 22/22 | 50 | ||
| HSK-M18 | M18x1.5 | 4-7 | 18 | 10 | 24/22 | 50 |
| 6-10 | 18 | 10 | 24/22 | 50 | ||
| HSK-M20 | M20*1.5 | 4-7 | 20 | 10 | 27/22 | 50 |
| 5-9 | 20 | 10 | 27/24 | 50 | ||
| 6-12 | 20 | 10 | 27/24 | 50 | ||
| 8.5-14 | 20 | 11 | 27/27 | 50 | ||
| HSK-M22 | M22X1.5 | 4-7 | 22 | 10 | 27/27 | 50 |
| 6-11 | 22 | 11 | 27/27 | 50 | ||
| 9-14 | 22 | 11 | 27/27 | 50 | ||
| HSK-M24 | M24X1.5 | 5-11 | 24 | 11 | 30/27 | 50 |
| 8.5-14 | 24 | 11 | 30/27 | 50 | ||
| HSK-M25 | M25x1.5 | 5-7.9 | 25 | 11.6 | 33/33 | 50 |
| 6-11 | 25 | 11.6 | 33/27 | 50 | ||
| 8.5-14 | 25 | 11.6 | 33/27 | 50 | ||
| 7-13 | 25 | 11.6 | 33/33 | 50 | ||
| HSK-M25 | M25x1.5 | 12.5-18 | 25 | 11.6 | 33/33 | 50 |
| HSK-M32 | M32x1.5 | 8-12 | 32 | 15 | 41/41 | 20 |
| 13-17.5 | 32 | 15 | 41/42 | 20 | ||
| 18-25 | 32 | 15 | 41/42 | 20 | ||
| HSK-M36 | M36*1.5 | 18-25 | 36 | 12 | 45/42 | 20 |
| HSK-M40 | M40x1.5 | 18-25 | 40 | 15 | 50/52 | 10 |
| 24-32 | 40 | 15 | 50/52 | 10 | ||
| HSK-M50 | M50x1.5 | 22-28 | 50 | 15 | 62/62 | 10 |
| 31-41 | 50 | 15 | 62/62 | 10 | ||
| HSK-M63 | M63x1.5 | 35-45 | 63 | 18 | 75/65 | 10 |
HSK-M-L 加長型公制螺紋
| 規格型號 | 螺紋規格 | 卡口范圍 | 螺紋外徑 | 螺紋長度 | 扳手尺寸 | 包裝單位 |
| HSK-M12-L | M12*1.5 | 3-6.5 | 12 | 15 | 18/15 | 50 |
| 3-5.5 | 12 | 15 | 18/19 | 50 | ||
| 4-8 | 12 | 15 | 18/19 | 50 | ||
| HSK-M16-L | M16*1.5 | 3-5.5 | 16 | 15 | 22/19 | 50 |
| 4-8 | 16 | 15 | 22/19 | 50 | ||
| 4-7 | 16 | 15 | 22/22 | 50 | ||
| 6-10 | 16 | 15 | 22/22 | 50 | ||
| HSK-M18-L | M18*1.5 | 3-7 | 18 | 15 | 24/22 | 50 |
| 5-10 | 18 | 15 | 24/22 | 50 | ||
| HSK-M20-L | M20*1.5 | 4-7 | 20 | 15 | 27/27 | 50 |
| 5-9 | 20 | 15 | 27/24 | 50 | ||
| 6-12 | 20 | 15 | 27/24 | 50 | ||
| 8.5-14 | 20 | 15 | 27/27 | 50 | ||
| HSK-M25-L | M25*1.5 | 5-7.9 | 25 | 15 | 33/33 | 50 |
| 7-13 | 25 | 15 | 33/33 | 50 | ||
| 12.5-18 | 25 | 15 | 33/33 | 50 |
注：應用場合：加長的螺紋長度，適合于厚板安裝。
HSK-P PG制螺紋
| 規格型號 | 螺紋規格 | 卡口范圍 | 螺紋外徑 | 螺紋長度 | 扳手尺寸 | 包裝單位 |
| HSK-P7 | PG7 | 3-6.5 | 12.5 | 8 | 17/15 | 50 |
| 4-8 | 12.5 | 8 | 17/19 | 50 | ||
| HSK-P9 | PG9 | 3-5.5 | 15.2 | 8.2 | 22/19 | 50 |
| 4-8 | 15.2 | 8.2 | 22/19 | 50 | ||
| HSK-P11 | PG11 | 4-7 | 18.6 | 10 | 24/22 | 50 |
| 6-10 | 18.6 | 10 | 24/22 | 50 | ||
| HSK-P13.5 | PG13.5 | 5-9 | 20.4 | 10 | 27/24 | 50 |
| 6-12.5 | 20.4 | 10 | 27/24 | 50 | ||
| HSK-P16 | PG16 | 4-7 | 22.5 | 10.8 | 30/27 | 50 |
| 6-11 | 22.5 | 10.8 | 30/27 | 50 | ||
| 8.5-14 | 22.5 | 10.8 | 30/27 | 50 | ||
| HSK-P19 | PG19 | 4-7 | 24 | 11 | 30/27 | 50 |
| 6-11 | 24 | 11 | 30/27 | 50 | ||
| 8.5-14 | 24 | 11 | 30/27 | 50 | ||
| HSK-P21 | PG21 | 5-7.9 | 28.3 | 12 | 36/33 | 50 |
| 7-13 | 28.3 | 12 | 36/33 | 50 | ||
| 13-18 | 28.3 | 12 | 36/33 | 50 | ||
| HSK-P25 | PG25 | 14-20 | 30 | 13 | 36/37 | 50 |
| HSK-P29 | PG29 | 13-17.5 | 37 | 12 | 46/41 | 20 |
| 18-25 | 37 | 12 | 46/41 | 20 | ||
| HSK-P36 | PG36 | 18-25 | 47 | 15 | 57/52 | 10 |
| 24-32 | 47 | 15 | 57/52 | 10 | ||
| HSK-P42 | PG42 | 22-28 | 54 | 15 | 64/62 | 10 |
| 31-41 | 54 | 15 | 64/62 | 10 | ||
| HSK-P48 | PG48 | 35-45 | 59.3 | 18 | 70/65 | 10 |
HSK-P-L 加長型PG螺紋
| HSK-P7-L | PG7 | 3-6.5 | 12.5 | 15 | 17/15 | 50 |
| HSK-P9-L | PG9 | 3-5.5 | 15.2 | 15 | 22/19 | 50 |
| 4-8 | 15.2 | 15 | 22/19 | 50 | ||
| HSK-P11-L | PG11 | 4-7 | 18.6 | 15 | 24/22 | 50 |
| 6-10 | 18.6 | 15 | 24/22 | 50 | ||
| HSK-P13.5-L | PG13.5 | 5-9 | 20.4 | 15 | 27/24 | 50 |
| 6-12.5 | 20.4 | 15 | 27/24 | 50 | ||
| HSK-P16-L | PG16 | 4-7 | 22.5 | 10.8 | 30/27 | 50 |
| 6-11 | 22.5 | 15 | 30/27 | 50 | ||
| 8.5-14 | 22.5 | 15 | 30/27 | 50 | ||
| HSK-P21-L | PG21 | 5-7.9 | 28.3 | 15 | 36/33 | 50 |
| 7-13 | 28.3 | 15 | 36/33 | 50 | ||
| 12.5-18 | 28.3 | 15 | 36/33 | 50 |
注：應用場合：加長的螺紋長度，適合于厚板安裝。
HSK-G G制螺紋
| 規格型號 | 螺紋規格 | 卡口范圍 | 螺紋外徑 | 螺紋長度 | 扳手尺寸 | 包裝單位 |
| HSK-G1/4 | G1/4 | 3-5.3 | 13.157 | 8.5 | 19/19 | 50 |
| 4-8 | 13.157 | 8.5 | 19/19 | 50 | ||
| HSK-G3/8 | G3/8 | 4-7 | 16.662 | 10 | 22/22 | 50 |
| 6-10 | 16.662 | 10 | 22/22 | 50 | ||
| HSK-G1/2 | G1/2 | 5-9 | 20.955 | 10 | 27/24 | 50 |
| 6-12.5 | 20.955 | 10 | 27/24 | 50 | ||
| HSK-G3/4 | G3/4 | 5-7.9 | 26.441 | 12 | 33/33 | 50 |
| 7-13 | 26.441 | 12 | 36/33 | 50 | ||
| 12.5-18 | 26.441 | 12 | 36/33 | 50 | ||
| HSK-G1 | G1 | 13-17.5 | 33.249 | 15 | 46/41 | 20 |
| 18-25 | 33.249 | 15 | 46/41 | 20 | ||
| HSK-G1-1/4 | G1-1/4 | 18-25 | 41.91 | 15 | 57/52 | 10 |
| 24-30 | 41.91 | 15 | 57/52 | 10 | ||
| HSK-G1-1/2 | G1-1/2 | 22-28 | 48 | 16 | 60/62 | 10 |
| 31-41 | 48 | 16 | 60/62 | 10 |
HSK-N NPT制螺紋
| 規格型號 | 螺紋規格 | 卡口范圍 | 螺紋外徑 | 螺紋長度 | 扳手尺寸 | 包裝單位 |
| HSK-N1/4 | NPT1/4 | 3-5.5 | 13.157 | 8.5 | 19 | 50 |
| 4-8 | 13.157 | 8.5 | 19 | 50 | ||
| HSK-N3/8 | NPT3/8 | 4-7 | 16.662 | 10 | 22 | 50 |
| 6-10 | 16.662 | 10 | 22 | 50 | ||
| HSK-N1/2 | NPT1/2 | 5-9 | 20.955 | 10 | 24 | 50 |
| 6-12 | 20.955 | 10 | 24 | 50 | ||
| HSK-N3/4 | NPT3/4 | 5-7.9 | 26.441 | 15 | 33 | 50 |
| 7-13 | 26.441 | 15 | 33 | 50 | ||
| 12.5-18 | 26.441 | 15 | 33 | 50 | ||
| HSK-N1 | NPT1 | 8-12 | 33.249 | 17 | 41 | 20 |
| 13-18 | 33.249 | 17 | 41 | 20 | ||
| 18-25 | 33.249 | 17 | 41 | 20 | ||
| HSK-N1-1/4 | NPT1 1/4 | 18-25 | 41.91 | 17 | 52 | 20 |
| 24-32 | 41.91 | 17 | 52 | 20 |
